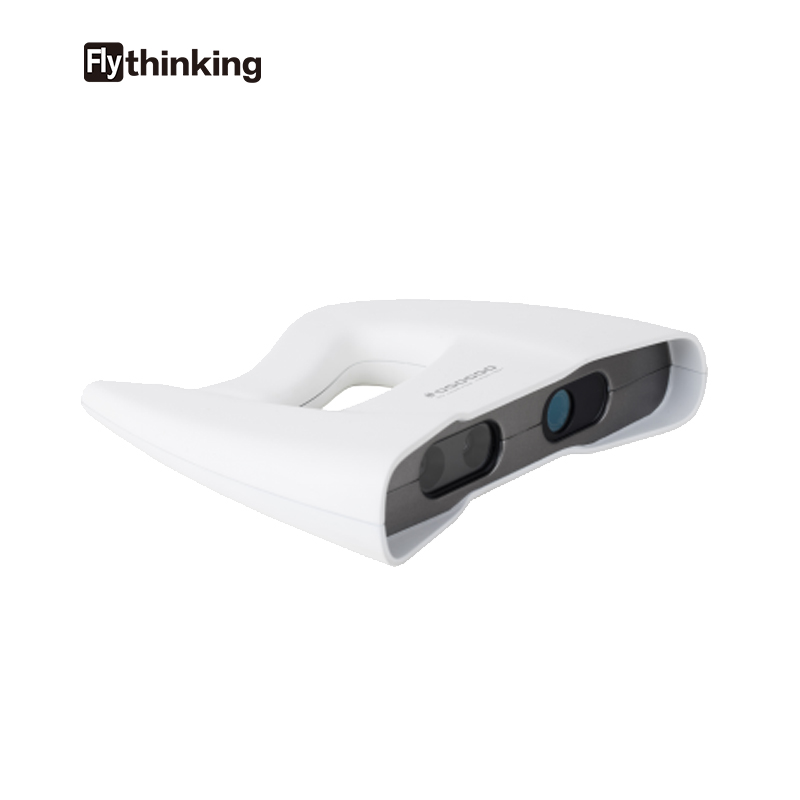

Handheld portrait scanner
[field:text/]
[field:text/]
  • [field:text/]
  • [field:text/]
Details

       The FSS3 scanner is a hand-held, three-dimensional color portrait scanner based on the principle of infrared grating depth imaging. It is a three-dimensional photography system based on video data capture. During the scanning process, the infrared structure grating is used to project light, and the measuring lens captures the measured depth data to calculate the depth map, and then the color data and the depth data collected by the color lens are performed. The matrix color is matched to obtain the color point cloud data and generate a standard ASC color point cloud, and then the single data is automatically spliced ??by the similar feature analysis for fuzzy recognition matching, and finally the complete color point cloud three-dimensional data is generated. Complete the color 3D data reconstruction process.
     Fast: the human body scan takes only 20 seconds to complete
    Hand-held: convenient and fast, free to change the scanning angle, avoiding data holes caused by dead ends of the groove
   User-friendly: 5 minutes of training, foolish operation
   Portable scanning: packed in a suitcase, light and portable, convenient for all occasions
   Full color scanning: RGB full color scanning for precise capture of high quality geometries and colors
   Portrait scanner exclusive: support portrait mode background filtering
   Application areas: color portrait 3D data acquisition (3D photography), used to make personalized gifts (such as 3D printing, crystal engraving, etc.), film and animation games 3D character model rapid construction, etc.
                                                           FSS3 scanner parameters

Scan mode

 Handheld scanning,   also fixed

3D resolution

0.9mm

Power

12v,36w

video frame rate

30fps

Point accuracy

0.5mm

output data

OBJ,PLY,STL,VRML

Space point distance

0.6-5mm

data interface

USB2.0

Working distance range

25cm~200cm

single frame acquisition time

0.033秒

Light source

Infrared light

acquisition time (half body)

20s

Maximum data acquisition speed

2,500,000 points / sec

, texture resolution

480*640px

Color

24-bit high color

whether to support texture acquisition

Yes


Can the data support 3D printing


Yes


Computer configuration

NVIDIA GTX650 and above, memory 2G and above, processor I5 and above, memory 8G and above

Lens

Fixed lens

system

Windows 7 or Windows 8 - x64
